- Molded from High Quality Thermoset Phenolic
- AREMA 14.1.12-1 Terminal Posts
- Easily Cut
AREMA Terminal Blocks
Product Synopsis
Twinco Terminal Blocks are sold either Bare Block, with 1 Washer and 1 Clamp Nut per post, “Complete with Hardware,” or “Hardware Bulk Shipped”
“Complete w/ hardware” indicates terminal post hardware is supplied. Hardware consists of 3 Washers, 2 Binding Nuts and 1 Clamp Nut per terminal post.
Consult the factory for any special hardware arrangements or assembly requirements.
2 Post Terminal Block
| Part # | Description |
|---|---|
| 014-0633-0-A | 2-3/8″ Centers (Bare Block) |
| 014-0633-0-0 | Assy, 2-3/8″ Centers with Clamp Nut & Washer |
| 000-1828-1-0 | Assy, 2-3/8″ Centers, Complete with Hardware |
| 000-1828-2-0 | Assy, 2-3/8″ Centers, Hardware Bulk Shipped |
12 Post Single Row Terminal Block
| Part # | Description |
|---|---|
| 000-1697-0-A | 1″ Centers (Bare Block) |
| 000-1697-0-0 | 1″ Centers with Clamp Nut & Washer |
| 000-1805-1-0 | 1″ Centers, Complete with Hardware |
| 000-1805-3-0 | 1″ Centers, Hardware Bulk Shipped |
*Terminal Block can be supplied in shorter lengths, consult factory

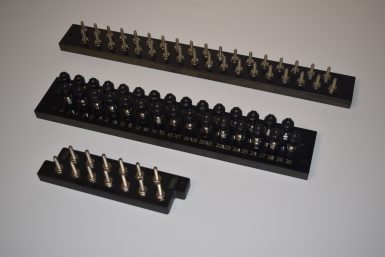

Terminal Board Assemblies
| Part # | Description |
|---|---|
| 000-5408-1-0 | 13 Way, Complete with Hardware |
| 000-5408-2-0 | 14 Way, Complete with Hardware |
| 000-1817-1-0 | 17 Way, Complete with Hardware |
| 000-1816-1-0 | 23 Way, Complete with Hardware |
| 000-1927-1-0 | 28 Way, Complete with Hardware |
| 000-3548-1-0 | 30 Way, Complete with Hardware |
12 Post Double Row Terminal Block
| Part # | Description |
|---|---|
| 014-0632-0-A | 1″ Centers (Bare Block) |
| 000-1814-1-0 | 1″ Center, Complete with Hardware, includes 6 Style 2 Connectors |
| 000-1814-2-0 | 1″ Center, Complete with Hardware, includes 6 Style 2 Connectors, Hardware Bulk Shipped |
| 000-4025-1-0 | 1″ Center, Complete with Hardware, less Terminal Connectors |
| 000-4025-2-0 | 1″ Center, Complete with Hardware, less Terminal Connectors, Bulk Shipped |
*Terminal Block can be supplied in shorter lengths, consult factory
